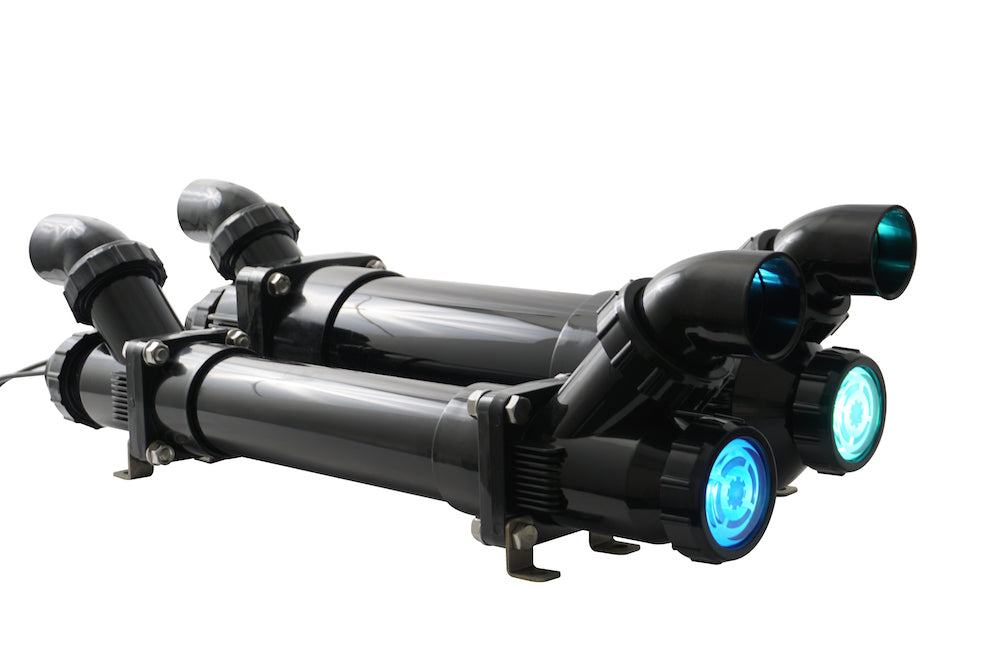

Lifegard Aquatics introduces the Pro-MAX UV Sterilizer, featuring a patent-pending, flow-through design with less restrictive angled inlet and outlet ports requiring less plumbing. This unique design enables easy installation of new or replacement systems as it can be positioned in multiple ways to fit any tight space.
Available with 3″ housing in 25, 40, 55, 90 and 120 Watt models and 5″ housing in 55, 90 and 120 Watt sizes. Each Pro-MAX features a High Output UV Bulb, Internal Protective Sleeve, and UL Listed Ballast which counts down the number of days until you need to replace the bulb. Maximum Operating Pressure 30 PSI.
Watt: 25
Lamp Current: 1.2A
UV Output Micro Watts: .05
Inlet/Outlet: 2" Slip
UVC uW/cm: 50
Lamp Life (hours): 9000
UV-C Output (watts): 7.5
Max Flow Rate: 1000gph
Max Water Flow Algae & Bacteria UVC 30,000 uW/cm2: 550gph
Max Aquarium Size: 130g
Max Pond Size: 2400g
------------------------------------------------------------------------
Watt: 55
Lamp Current: 1.2A
UV Output Micro Watts: .15
Inlet/Outlet: 2" Slip
UVC uW/cm: 150
Lamp Life (hours): 9000
UV-C Output (watts): 16.5
Max Flow Rate: 3600gph
Max Water Flow Algae & Bacteria UVC 30,000 uW/cm2: 2100gph
Max Aquarium Size: 350g
Max Pond Size: 6000g
-------------------------------------------------------------------------
-
Description: 3″ Amalgam High Output UV 90W
-
Dimensions: 32.5" x 4.51" x 9"
- Lamp Watts: 90
- Lamp Current: 1.2A
- UV Output Micro Watts: 0.27
- UVC W/cm: 270
- Lamp Life (Hours): 9000
- UV-C Output (Watts): 28
- Max Flow Rate: 4600 GPH
- Max Water Flow Algae & Bacteria UVC 30,000 W/cm2: 2800 GPH
- Max Aquarium Size: 650 Gallons
- Max Pond Size: 11000 Gallons
For Protozoa 180,000 µW/cm2 – Cut down the flow rate by minimum 1/6th. Monitor the temperature when reducing the flow as low flow may result in extra heat that can cause damage to the UV and system.
